Chicago, IL


  • Design Criteria:
    • Create a distinctive look for an urban mixed-use development with no two floors alike.
    • Produce a design that is shaped by climate and landscape, weaving it into its surroundings and interconnecting the building and its environment.
    • Maximize environmental friendliness, including solar shading, green building materials and other sustainable-design concepts.
    • Create reinforced concrete balconies unique to each dwelling that provide an undulating appearance that aids solar shading and wind flow.
  • Architect: Jeanne Gang, Studio Gang Architects
  • Architect of Record: Loewenberg & Associates
  • Developer: Magellan Development Group
  • Engineer: Magnusson Klemencic Associates
  • General Contractor: James McHugh Construction Co
  • Epoxy-Coated Reinforcing Steel: 2445 tons

Year Completed: 2010

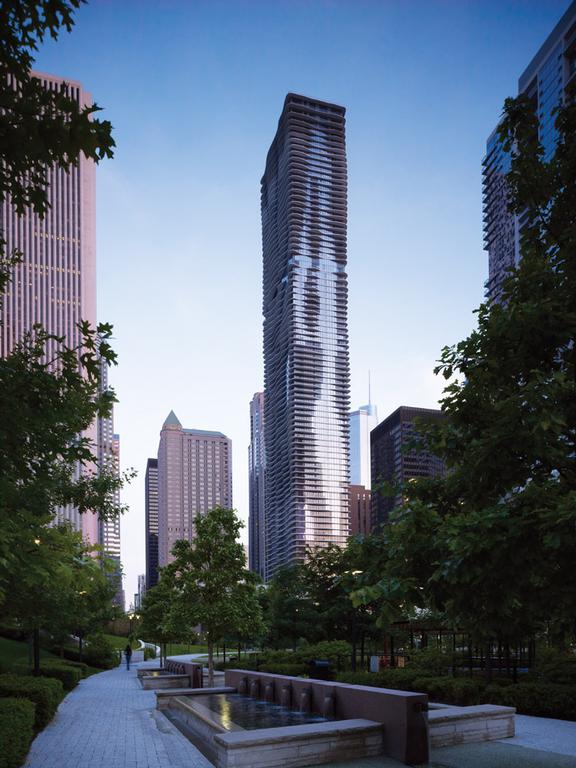

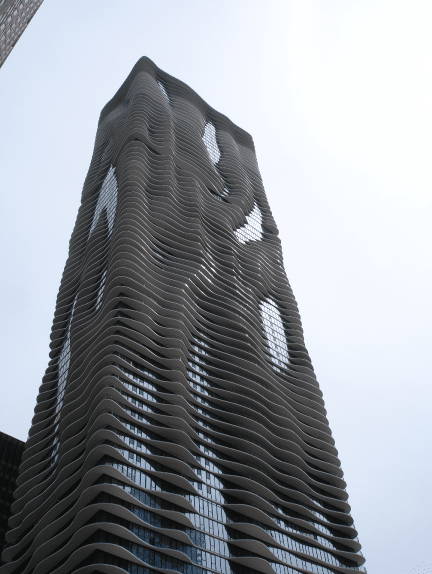

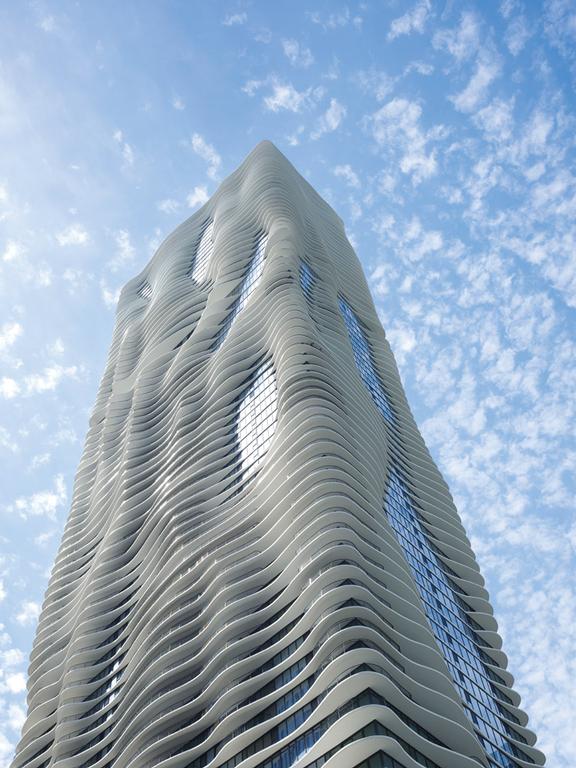

The Aqua Tower is an 82-story, mixed-use building designed by Jeanne Gang, founder of Studio Gang Architects. This is the largest project ever awarded to an American firm headed by a women. Located in downtown Chicago, it was named to fit the nautical theme of the owner’s other structures in the development complex. Enhancing that imagery are wave-like reinforced concrete balconies with unique, irregular shapes that make the skyscraper’s façade appear to undulate. The balconies were created by combining concrete and epoxy-coated reinforcing bar in customized, reusable concrete forms.

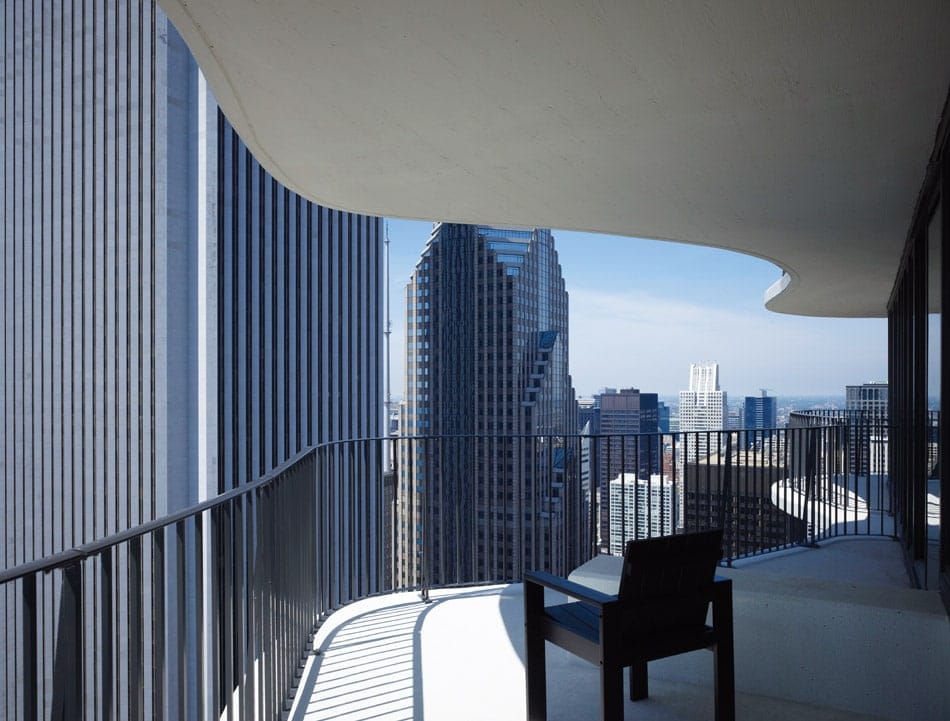

The outdoor terraces on the 819-foot-tall building cantilever from 2 to 12 feet and differ in shape from floor to floor in response to the view, solar shading, and size and type of dwelling. They resemble the striated limestone outcroppings that are common to the Great Lakes region and also suggest the wave-like motion produced by bodies of water. Computer modeling determined the shape of each balcony, but because each level’s footprint varies, the calculations were performed floor by floor.

The tower’s east-west orientation maximizes its winter solar performance. The reinforced concrete balconies extend further on the southern façade to increase shading and reduce solar exposure in the summer while allowing passive warming in the winter. To accommodate the balcony cantilever, the structure features 28-foot column spacing and a slightly larger column with 9-inch reinforced concrete slabs for each floor.

Working closely with the contractor and mechanical contractor, Studio Gang Architects found the high number of shape variations in the floor slabs could be achieved without increasing the building’s construction timetable. The balconies’ shapes also provide protection against wind loading, minimizing the amount of damping required to ensure stability even in high winds.

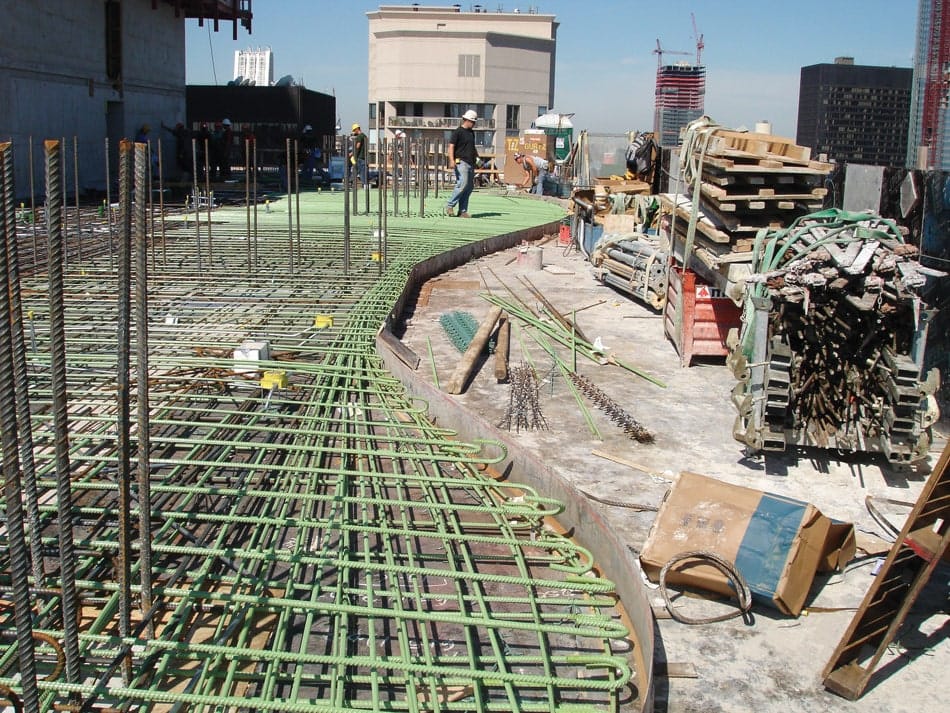

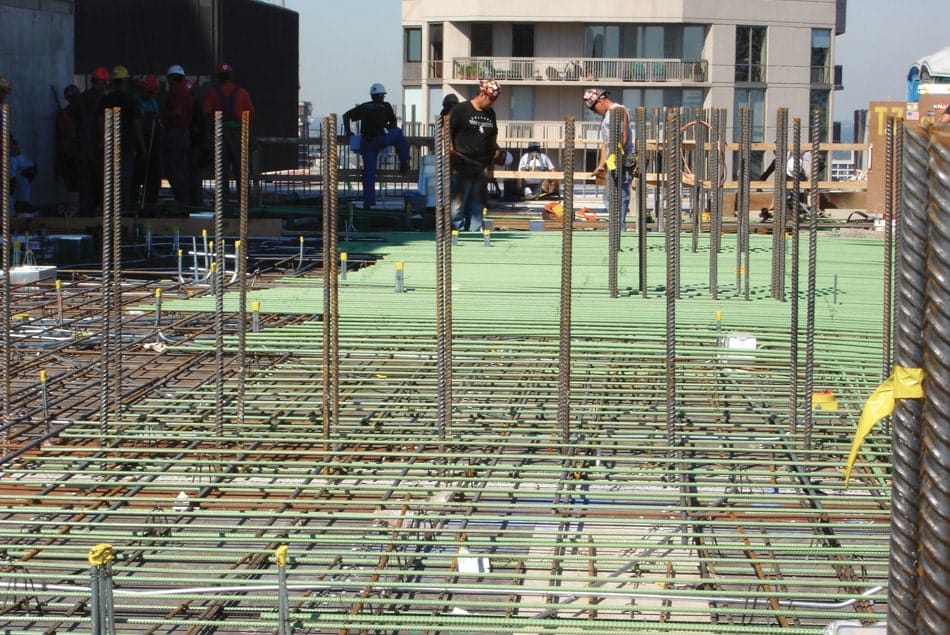

The 1.9-million-square-foot project features epoxy-coated reinforcing bar in all of the balconies as well as in the five-level, 500,000-square-foot below-grade parking structure. Epoxy-coated reinforcing bar was used in these strategic areas to ensure no corrosion induced damage would occur. Approximately 2445 tons of epoxy-coated reinforcing bar was used.

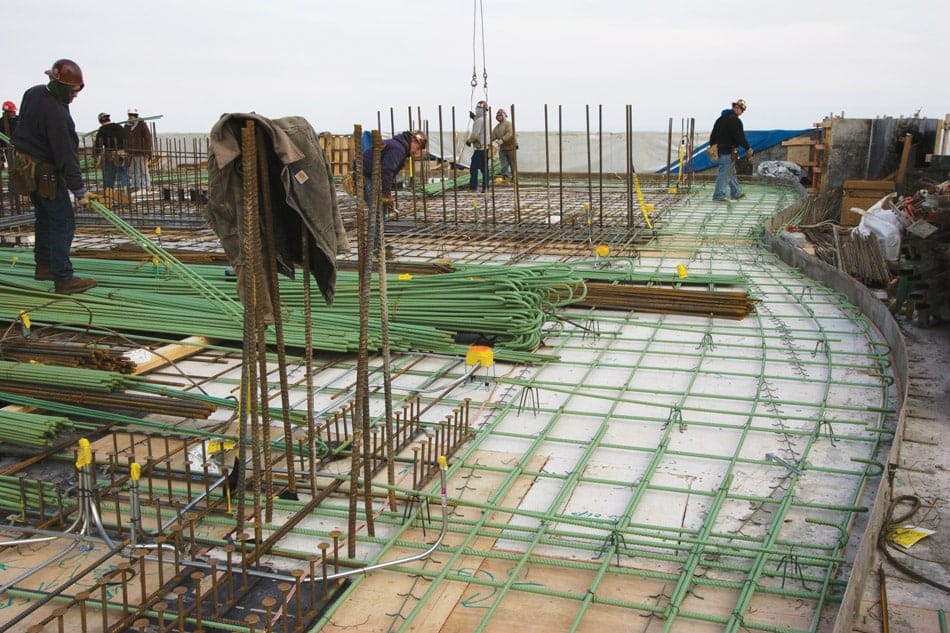

To accommodate the fluid nature of the balconies’ designs, the contractor ordered reinforcing bar in three different lengths rather than fabricate bar to custom lengths in the field. The savings in labor costs and field adjustments easily compensated for the cost of the added steel.

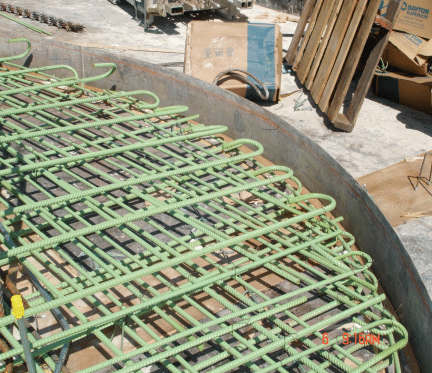

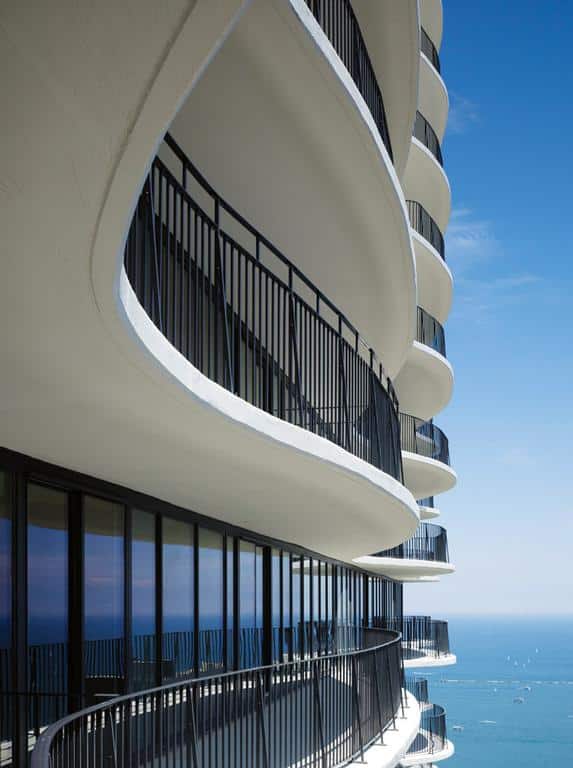

Flexible steel edge-forms were sculpted into the prescribed shape for each balcony and reused on each floor to minimize formwork material waste. The balcony slabs, averaging about 2,600 square feet each, are 9 inches thick along the façade and become thinner as they cantilever further from the facade, aiding drainage.

The project features retail and office space on the lowest three floors, hotel rooms on the fourth through 18th floors, luxury rental residences on floors 19 through 52 and condominiums on floors 53 and up. A green roof, one of the largest in Chicago at 80,000 square feet, includes various plantings as well as an outdoor pool, running track, gardens, fire pits and a yoga terrace.
