Inside the Two-Step TEC Application Process: How Textured Epoxy-Coated Rebar Is Made

A look inside the production line that turns uncoated reinforcing steel into ASTM A1124-compliant textured epoxy-coated bar — and why the result behaves as a single coating system despite being applied in two distinct steps.

Textured epoxy-coated (TEC) reinforcing bar looks like a single coated product because, by design, it is. But producing it requires a carefully sequenced manufacturing process that bonds two functionally distinct epoxy layers into one monolithic coating while the bar is still hot from the line. Understanding that process matters for everyone in the TEC value chain — specifiers writing project requirements, plant operators running the production line, and QC personnel verifying that the finished bar meets ASTM A1124/A1124M-23.

ASTM A1124 sets the performance and acceptance requirements for the system and defines key elements of the production sequence: surface preparation, application by electrostatic spray, the use of a texturing surface treatment material applied over the base epoxy, and the verification testing that confirms a compliant bar leaves the plant. Coating requirements for the base epoxy reference A775/A775M Annex A1; texturing surface treatment requirements live in A1124 Annex A1.

This article walks through the four production steps in sequence, explains the molecular bond that ties the two coating layers together, and identifies the process parameters that QC personnel track to demonstrate A1124 compliance.

Step 1: Surface Preparation by Abrasive Blasting

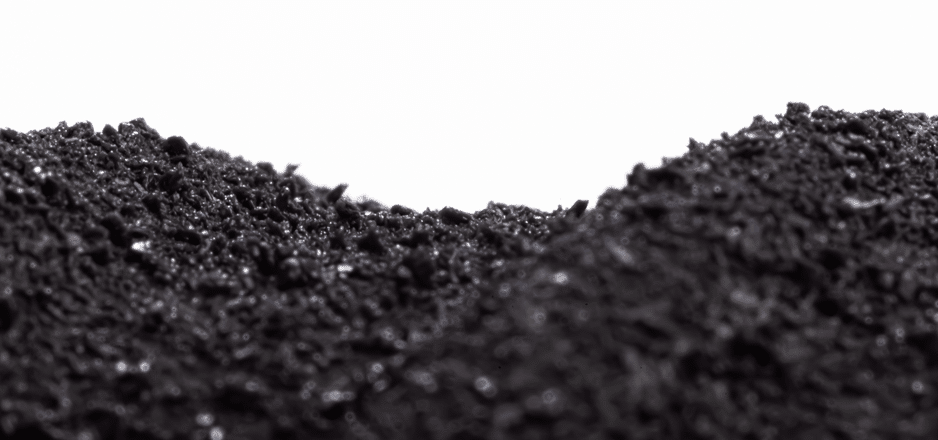

Production begins with uncoated reinforcing steel entering the line. Before any coating is applied, the bar must be abrasive blast-cleaned to remove mill scale, surface rust, oils, and other contaminants that would prevent the epoxy from forming a sound bond with the steel.

Surface preparation requirements for TEC track those of A775 for conventional ECR. The standard practice across compliant plants is abrasive blasting to a near-white metal finish, evaluated against the visual standards familiar to coating applicators. The cleaned surface profile — the roughness the blast media leaves behind — is what gives the first epoxy layer its mechanical bind into the steel.

Specifier note: insert the exact A1124 surface preparation language, including the visual standard reference and any anchor profile requirements, from the current edition of the standard.

A clean, dry, properly profiled bar exiting blast cleaning sets up everything that follows. If surface preparation is compromised, no amount of coating thickness can compensate downstream.

Step 2: Heating the Bar to Coating Temperature

Once cleaned, the bar moves into an induction or convection heating zone where it is brought to coating temperature. This step enables both epoxy layers to be applied as powders that immediately melt and flow into continuous films when they contact the bar.

The bar’s thermal mass also carries enough residual heat through the rest of the line to make the second coating step possible without reheating. That is the central engineering insight behind the two-step process: a single heat-up serves both application booths.

Specifier note: insert the bar temperature ranges A1124 references for compliant application, and any thermocouple or pyrometer verification requirements applicable to the QC program.

Step 3: First Application Booth — Fusion-Bonded Epoxy (Primer)

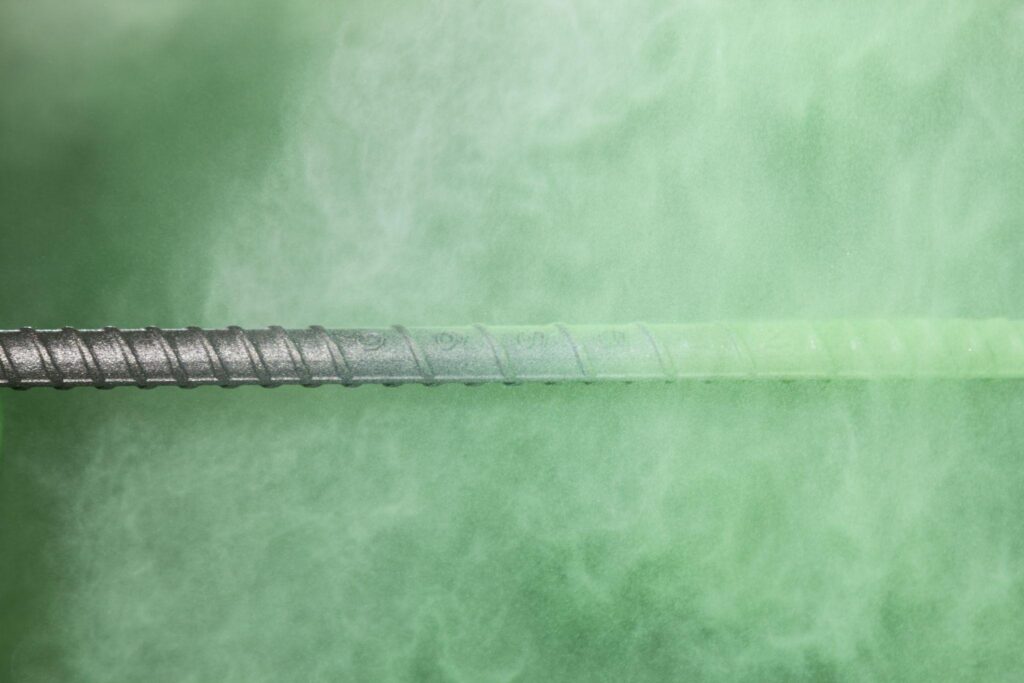

The heated bar passes through the first electrostatic spray booth, where a powdered fusion-bonded epoxy is applied. The electrostatic charge holds the powder to the bar; the bar’s heat melts the powder on contact.

What was dry powder a moment earlier becomes a liquid film that flows around the bar’s full circumference, into the relief between deformations, and across the ribs themselves. This is the same base coating chemistry that defines conventional ECR under ASTM A775. It is the corrosion barrier primer layer, responsible for keeping chlorides, oxygen, and electrolytes away from the steel surface.

At the exit of the first booth, the bar carries a continuous, smooth ECR film. If the line is stopped here, the product would be conventional epoxy-coated rebar, compliant to ASTM A775.

Step 4: Second Application Booth — Textured Epoxy (2nd Layer)

The line does not stop. The still-hot, ECR-coated bar moves immediately into the second electrostatic spray booth, where a textured epoxy powder is applied over the first layer.

The second material is engineered differently from the base epoxy. Where the first powder is formulated to melt and flow into a smooth film, the second is formulated to melt, bond, and retain a textured surface profile as it cures. As it contacts the still-molten ECR layer, it covalently bonds with the epoxy chemistry below rather than sitting on top as a separate film.

The textured profile that results re-creates the mechanical anchor geometry that gives uncoated bar its bond with concrete — a geometry that conventional ECR partially smooths over. That texture is the functional differentiator of A1124 bar.

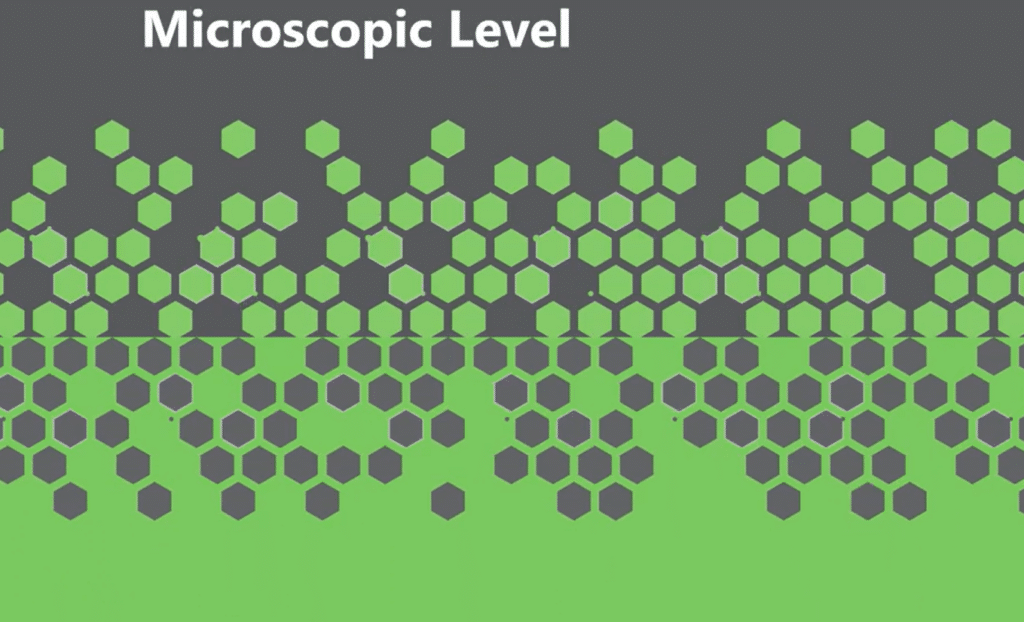

Covalent Bonding at the Molecular Level

The phrase “two-step process” can give the wrong impression. The two epoxy materials are not stacked films with an interface between them; they are chemically bonded into a single coating system. As the second powder melts onto the still-fluid ECR layer, the two epoxy networks crosslink through shared covalent bonds. By the time both layers have fully cured, the bar carries one continuous coating with stratified properties: corrosion barrier at the steel interface, texture and damage tolerance at the surface, which interacts with the concrete interface and provides better bond strength.

The chemistry of this bond — and why it produces a coating that behaves as a single film under load and exposure — is covered in more detail in the EIG article on covalent bonding.

Why the Result Is Monolithic, Not Stacked

Coatings applied in separate operations, with cure cycles between them, typically form discrete layers with weaker adhesion at the interface. TEC sidesteps that problem in two ways. First, the second coat is applied before the first has cured, so the two epoxy networks form crosslinks across what would otherwise be an interface. Second, the bar’s residual heat carries both layers through cure together rather than separately.

The practical consequence is that the coating cannot be peeled apart into its two layers. Cross-section micrographs show a stratified but continuous film — TEC over ECR over steel — without the parting line that would indicate two separately cured coatings.

Process Control Parameters Under A1124

A1124 acceptance depends on demonstrating that finished bars meet performance criteria for corrosion resistance, bond strength, and damage tolerance. In practice, plant QC programs translate those acceptance criteria into process controls applied at each station:

  • Surface preparation verification. Anchor profile depth, near-white visual standard, and ambient conditions at the time of coating.
  • Bar temperature at coating. Tracked at the first and second booth entries to confirm proper melt and flow of each powder.
  • Coating thickness. Measured on finished bars, with the total film thickness reflecting both the ECR base and the textured topcoat.
  • Coating continuity. Holiday detection on the finished bar to identify any pinholes or breaks in the film.

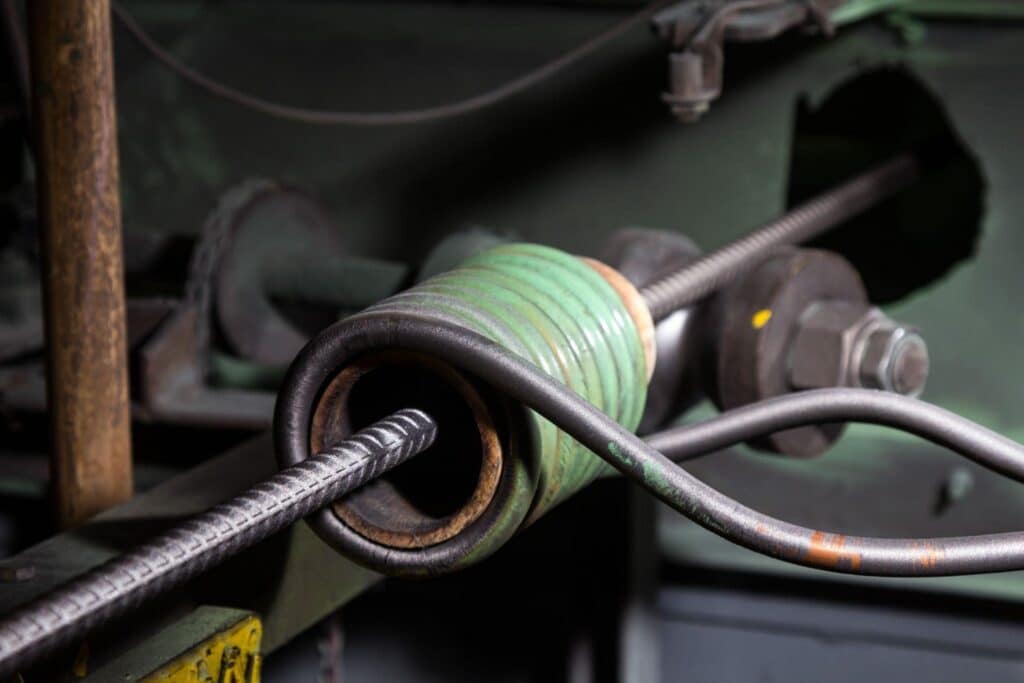

  • Flexibility. Mandrel bend testing per A775 Annex A1.3.5 to verify the coating can accommodate normal handling and bending.
  • Adhesion and bond verification. Sampling for the periodic ASTM A944 beam-end testing and lap splice testing required to demonstrate A1124 performance.

Specifier note: insert the specific A1124 numeric values for film thickness, holiday limits, and process control tolerances applicable to your project’s bar sizes and end use.

These parameters give plant QC personnel the day-to-day measurements they need and give specifiers and DOT inspectors the documentation they should expect at the point of acceptance.

From Production Line to Project

Understanding the production sequence is more than a plant-floor exercise. It informs how specifiers write material requirements, how inspectors evaluate mill certifications and coating records, and how field personnel interpret the bar they receive. A1124’s structure as a performance specification anchored by process discipline is what allows TEC bar from any compliant applicator to meet the same acceptance criteria — the foundation for broader adoption by state DOTs and code/regulation bodies.

References

  1. ASTM International. 2023. Standard Specification for Textured Epoxy-Coated Steel Reinforcing Bars. ASTM A1124/A1124M-23. West Conshohocken, PA.
  2. ASTM International. 2022. Standard Specification for Epoxy-Coated Steel Reinforcing Bars. ASTM A775/A775M-22. West Conshohocken, PA.
  3. Rogozinski, J. D., and A. Del Percio. 2024. “Raising the Reinforcing Bar: Introducing Textured Epoxy Coating.” ASPIRE Magazine, Winter 2024, pp. 38–39.
