Steel Coating: Methods, Applications, and How to Choose the Right System
| Key Takeaways – Steel coating is the application of a protective layer that controls how steel reacts to moisture, oxygen, chlorides, chemicals, and wear. – Coatings protect through two mechanisms: barrier films that block corrosive agents, and sacrificial metallic layers such as zinc that corrode in place of the steel. – The right method depends on exposure environment, mechanical demands, expected service life, and total life-cycle cost, not on initial price alone. – For reinforcing steel embedded in concrete, fusion-bonded epoxy coating has the longest and best-documented field performance record of any organic coating system in North America. |
What Is Steel Coating?
Steel coating applies a protective or functional layer to a steel surface so the underlying metal is isolated from the conditions that degrade it. Uncoated steel reacts readily with water and oxygen, and the reaction accelerates sharply in the presence of chlorides, acids, or industrial chemicals. A coating changes that interaction by controlling what actually touches the steel.
Two protection mechanisms cover most coating systems. Barrier coatings — epoxy, polyurethane, powder coatings, and most paint systems — form a continuous film that physically blocks moisture and oxygen from reaching the substrate. Sacrificial coatings — hot-dip galvanizing and zinc-rich primers — rely on a metal that is more electrochemically active than steel, so the zinc corrodes preferentially and protects exposed steel nearby even after the coating is scratched.
Coating thickness is a central performance variable. Thicker films generally last longer and tolerate more handling, but they cost more and can affect fit at threaded connections, bar deformations, or close-tolerance assemblies. The reasons for coating steel go beyond corrosion control: wear resistance, improved bonding to an adjacent material, electrical isolation, and appearance all factor into coating selection.
Why Steel Coating Matters for Structural and Infrastructure Applications
Unprotected steel fails fastest in outdoor, marine, and industrial environments, where moisture, salt, and chemical exposure are continuous. For structural steel that means section loss and eventual capacity reduction. For reinforcing steel in concrete the consequence is different and in some ways worse: the steel is hidden, and by the time corrosion shows at the surface, damage is already advanced.
Steel coatings extend service life, reduce inspection and maintenance cycles, and improve safety by keeping structural components within their design assumptions for longer. In reinforced concrete, corrosion protection systems that address the bar itself are essential, because rust occupies several times the volume of the steel it replaces. That expansion cracks and spalls the concrete cover from the inside, and repair costs quickly dwarf the original cost of protection.
Coating selection also affects engineering behavior. Surface friction changes the bond between reinforcing bar and concrete. Electrical behavior matters where cathodic protection or stray currents are present. Surface finish matters where a coating must accept a topcoat or resist abrasion. These are design decisions, not just durability decisions.
Common Steel Coating Methods
The primary steel coating methods in use today are hot-dip galvanizing, electroplating, epoxy coating, powder coating, conversion coatings, and thermal spray. Each uses a different process, delivers a different film, and fits a different combination of exposure, budget, and service-life requirements. No single method is optimal everywhere; the selection should balance environmental exposure, mechanical stress, cost, and the performance record in the intended application.
Epoxy Coating

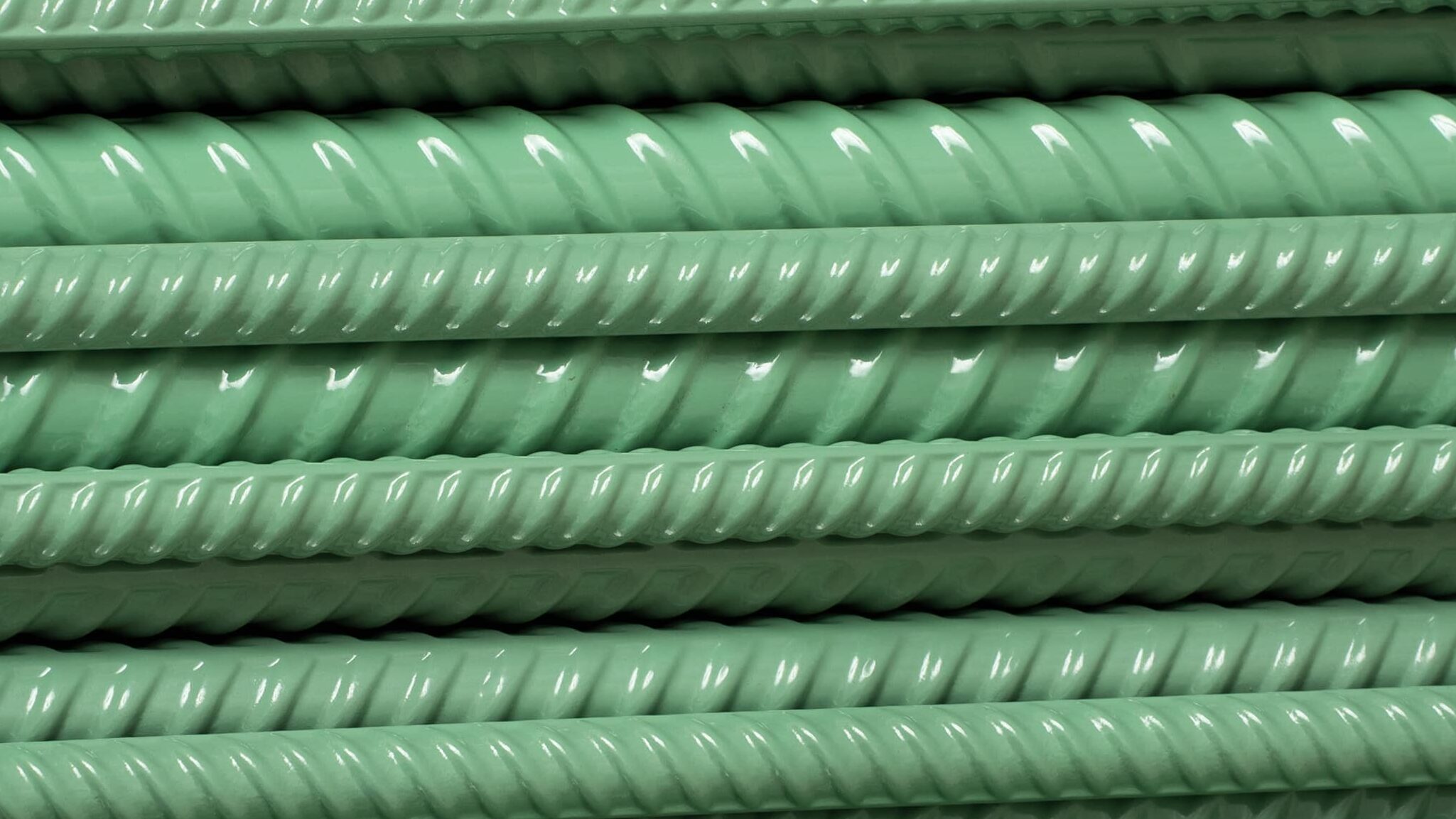

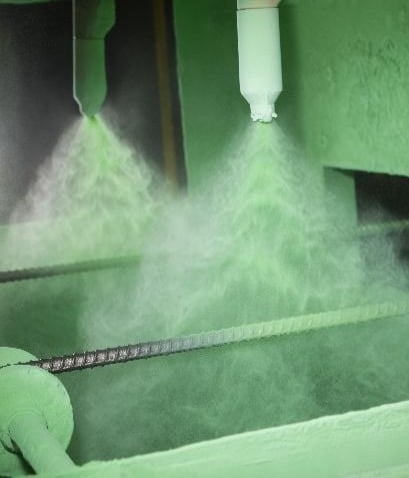

Epoxy coating systems cure into a hard, tightly crosslinked film with strong resistance to moisture, chemicals, and abrasion, and excellent adhesion to properly prepared steel. Liquid epoxies are used on pipelines, storage tanks, industrial floors, and structural steel primers. For reinforcing steel in concrete, the coating is applied as a fusion-bonded epoxy (FBE): cleaned bars are heated and passed through an electrostatic powder-coating booth, where dry epoxy powder melts on contact and flows into a continuous, uniform protective layer.
Surface preparation is the single largest determinant of coating performance. Mill scale, rust, oil, and dust left on the steel are the leading causes of premature coating failure across every coating type, and epoxy is no exception. That is why the manufacturing of epoxy coated rebar follows strict CRSI plant certification controls covering abrasive cleaning, surface profile, pre-heat temperature, powder application, cure, and coating thickness and holiday testing on every bar.
Epoxy-coated reinforcing steel is used in bridge decks and substructures, highway pavements, parking structures, marine structures, and wastewater facilities. Its field history in these applications runs back to the early 1970s.

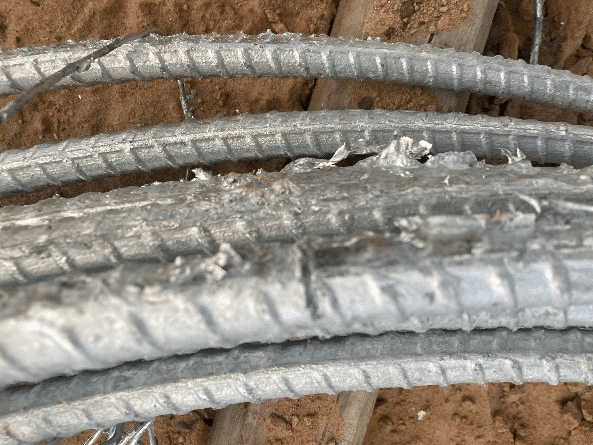

Hot-Dip Galvanizing and Zinc Coatings

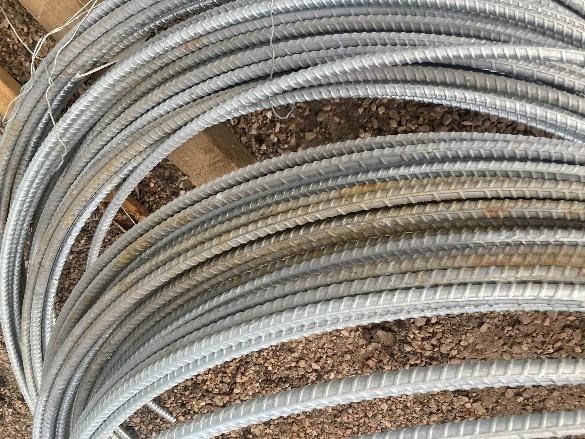

Hot-dip galvanizing immerses cleaned steel in molten zinc, producing a bonded series of zinc-iron alloy layers topped with a layer of pure zinc. The zinc protects two ways: as a barrier while intact, and sacrificially at scratches and cut edges, where it corrodes in preference to the exposed steel.
Galvanized steel offers long service life and low maintenance in atmospheric settings, and it is widely used for structural steel, fencing, guardrail, and hardware. It adds thickness that must be accounted for at threaded or close-fit connections, and it offers no color options without a topcoat.
For reinforcing steel embedded in concrete, the comparison shifts. Zinc reacts with fresh concrete and can be consumed over time in chloride environments, and laboratory research comparing the two systems has found that epoxy-coated bars outperform galvanized bars when subjected to deicing-salt exposure. Galvanized reinforcement remains a reasonable option in some applications, but the performance data for chloride-exposed concrete favors fusion-bonded epoxy.
Powder Coating and Thermal Spray
Powder coating applies a dry polymer powder electrostatically, then cures it in an oven into a solid, even film. It produces minimal waste, offers excellent wear resistance and finish quality, and is widely used on architectural and industrial components. Its heat resistance is limited, and it depends heavily on surface preparation and controlled cure.
Thermal spray (metallizing) propels molten or semi-molten zinc, aluminum, or ceramic particles onto the steel at high velocity, building thick, durable layers. It is used on bridges, offshore structures, and heavy industrial components where a galvanized-style sacrificial layer is needed on pieces too large or too complex to dip. Equipment and labor cost are higher than for most other methods.
How to Choose the Right Steel Coating Method
Selection comes down to a small set of questions.
- What is the exposure? This is the most important factor. Outdoor, marine, deicing-salt, and chemical environments require robust corrosion protection — epoxy or zinc-based systems — rather than a decorative or light-duty coating.
- What mechanical demands will the coating see? Abrasion, impact, and frequent handling call for tougher, thicker films or a coating designed to be repaired in the field.
- What is the total cost? Low initial cost often means more frequent recoating and inspection. Evaluate coating price and maintenance cost together over the intended service life.
- What does the performance record show? For reinforced concrete, the evaluation of multiple corrosion protection systems for bridge decks compares epoxy-coated reinforcing against alternatives on chloride threshold, time to corrosion, and life-cycle cost.
- What finish is required? Appearance and surface texture should inform the choice but should never override functional protection in an aggressive environment.
Steel Coating Process Overview
Regardless of method, the coating process moves through the same stages, and each contributes to the final result.
- Surface cleaning removes oil, grease, and loose contamination.
- Abrasive blasting removes mill scale and rust and establishes a surface profile the coating can grip.
- Surface treatment (where used) applies a conversion coating or pre-treatment to improve adhesion.
- Coating application by dip, spray, electrostatic powder, or thermal spray.
- Curing under controlled temperature, time, and humidity so the film develops its full strength and protective properties.
- Post-treatment inspection of adhesion, thickness, and continuity to confirm the coating meets specification before the component goes into service.
Surface preparation is the step most often shortchanged and the one most often responsible for failure. Contamination, residual rust, or an inadequate profile undermines every coating that follows. For fusion-bonded epoxy on reinforcing bar, cure control and holiday detection at the plant are what turn a good coating material into a reliable corrosion protection system.
How Epoxy Interest Group Supports Steel Coating Specification
The Epoxy Interest Group is the industry organization dedicated to advancing epoxy-coated reinforcing steel in construction and infrastructure. EIG provides research summaries, field performance data from state DOT and university studies, specification guidance covering ASTM A775, A934, A1124, and D3963, and educational resources for engineers, specifiers, contractors, and inspectors.
The Project Examples library documents bridges, parking structures, and marine applications where epoxy steel coating systems have delivered long-term corrosion protection under real exposure conditions.
Final Thoughts
Steel coating selection is a balance of exposure, mechanical demand, service-life expectation, and life-cycle cost. Every method described here has a place. For reinforcing steel in concrete exposed to chlorides, fusion-bonded epoxy coating has the most extensive long-term field performance data of any organic coating method and remains the most widely specified corrosion protection system for reinforced concrete in North America. Engineers and specifiers evaluating coating options for new construction or rehabilitation will find the underlying research and specification guidance in EIG’s resource library.
Explore Technical Resources on Steel Coating
EIG’s library includes research, field studies, and specification guidance on epoxy steel coating for reinforced concrete and structural applications. Learn More to access the complete resource collection on epoxy-coated reinforcing steel and corrosion protection systems.
Frequently Asked Questions
What is the most effective steel coating method for reinforced concrete bridges?
Fusion-bonded epoxy coating is the most widely specified system for bridge reinforcement in North America and carries the longest field performance record. Studies by multiple state DOTs show coated bars extend time to corrosion initiation and reduce deck repair over the structure’s life.
How does epoxy coating compare to galvanizing for reinforcing steel corrosion protection?
Both protect against corrosion. Galvanizing provides sacrificial protection; epoxy provides a barrier. In laboratory testing under deicing-salt exposure, epoxy-coated bars have outperformed galvanized bars, and zinc can be consumed over time in chloride-rich concrete.
How long does epoxy steel coating last in outdoor and marine environments?
Coastal bridge substructures with epoxy-coated reinforcing have shown no corrosion-related distress after more than 20 years of marine exposure, and life-cycle models for coated bridge decks project 75-year service lives with substantially fewer repairs than uncoated decks.
What surface preparation is required before applying epoxy coating to reinforcing steel?
Bars are abrasive-blast cleaned to a near-white condition with a specified surface profile, then coated within a short window before oxidation can recur. Certified plants verify cleanliness and profile as part of quality control.
What ASTM standards govern epoxy coating for reinforcing steel?
ASTM A775 (straight bars coated before fabrication), ASTM A934 (bars coated after fabrication), ASTM A1124 (textured epoxy-coated bars), ASTM A884 (coated wire and welded wire reinforcement), and ASTM D3963 (handling and placement requirements).
