Epoxy for Rebar: Anchoring Adhesives, Protective Coatings, and How to Choose the Right One
| Key Takeaways – “Epoxy for rebar” describes two very different products: an anchoring adhesive that bonds bars into drilled holes, and a fusion-bonded epoxy coating applied at a certified plant to protect the bar from corrosion. – Post-installed dowels, retrofits, and railing anchors call for anchoring epoxy. – New construction exposed to deicing salts, seawater, or standing moisture calls for epoxy-coated rebar. – The two are not interchangeable. One seals a single connection point; the other protects the entire bar surface for the life of the structure. – Both exist to solve the same problem: chlorides and moisture reaching unprotected steel, which corrodes, expands, and cracks the concrete around it. |
What “Epoxy for Rebar” Means: Two Different Applications
Search for epoxy for rebar and you will find two products sitting side by side that have almost nothing in common beyond the word “epoxy.” The first is anchoring epoxy, a two-part liquid adhesive dispensed from a cartridge into a drilled hole to bond a bar into hardened concrete or masonry. The second is epoxy-coated rebar, a reinforcing bar that arrives on site already finished with a factory-applied, fusion-bonded epoxy powder coating that shields the steel from corrosion.
Your project type tells you which one you need. If you are doweling new bars into an existing slab, retrofitting a connection, or setting a railing post, you are looking for anchoring adhesive. If you are placing reinforcement in new cast-in-place or precast concrete that will see road salt, marine air, or continuous moisture, you are looking for coated bar.
The distinction matters because the products are not substitutes for one another. Anchoring epoxy is applied on site by the installer. Epoxy coating is a manufactured surface treatment applied under controlled conditions at a certified coating plant, and it cannot be replicated in the field.
Anchoring Epoxy for Rebar
Anchoring epoxy is a structural adhesive, typically supplied as a two-component cartridge that mixes resin and hardener through a static mixing nozzle. Once dispensed into a clean drilled hole, it cures into a rigid material that bonds the bar to the surrounding concrete along the full embedment depth.
That full-depth bond is what separates adhesive anchors from mechanical anchors. A wedge or sleeve anchor transfers load through friction or expansion at discrete points, which concentrates stress and can crack thin or lightly reinforced concrete. Adhesive anchors distribute load along the entire embedded length of the bar, which generally allows closer edge distances and higher capacities in cracked or uncracked concrete when installed per the manufacturer’s evaluation report.
When Anchoring Epoxy Is the Right Choice
Common applications include:
- Doweling new reinforcing bars into existing concrete for slab extensions, deck widenings, and repair work
- Retrofitting structural connections where bars were omitted or need to be added
- Anchoring railings, bollards, equipment bases, threaded rod, and rebar into concrete or masonry
Anchoring epoxy suits post-installed connections. It is not a corrosion protection system for new construction; in that setting, epoxy-coated rebar is specified instead. Before purchasing, confirm hole diameter, embedment depth, and the approved product against the project drawings or the structural engineer’s specification. Adhesive anchors carry specific evaluation reports, and substituting products changes the design capacity.
How to Properly Anchor Rebar with Epoxy
Installation is straightforward, but every step matters.
- Drill the hole to the diameter and depth called out in the specification. Typical embedment runs 8 to 12 times the bar diameter, but follow the engineer’s requirement.
- Clean the hole thoroughly. Use the 2x2x2 method: blow out with compressed air, brush with a wire brush sized for the hole, blow again, and repeat the sequence twice. Dust left on the walls of the hole is the most common cause of bond failure because the epoxy bonds to the dust rather than to sound concrete.
- Dispense the epoxy starting at the bottom of the hole and withdrawing the nozzle as you fill, until the hole is roughly five-eighths full. Discard the first few pumps until the mix color is uniform.
- Insert the bar with a slow clockwise twist to work out air pockets and wet the full surface. Epoxy should squeeze slightly from the top of the hole.
- Allow the epoxy to cure undisturbed. Cure times range from about 4 to 24 hours depending on product and ambient temperature, and cold concrete extends cure substantially.
Manufacturer instructions always govern. Gel time, cure time, and minimum substrate temperature vary by product, and the published capacity assumes the published procedure was followed.
Epoxy-Coated Rebar for Corrosion Protection

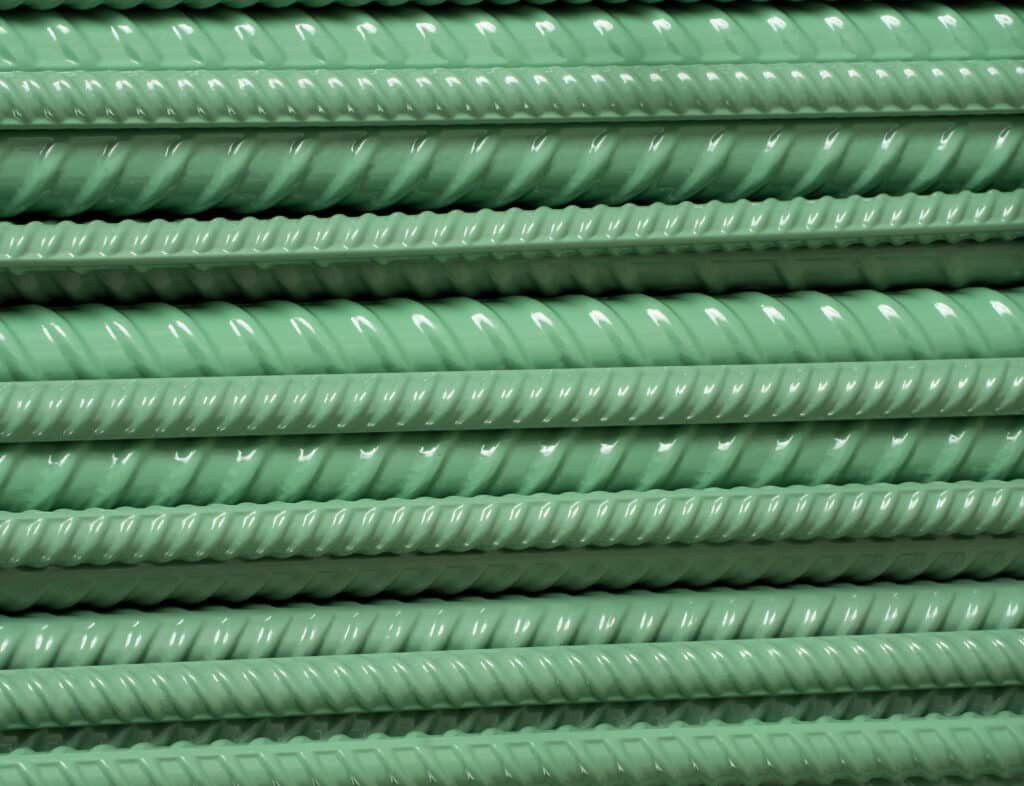

Epoxy-coated rebar is standard deformed steel reinforcing bar that has been cleaned by abrasive blasting, heated, and passed through an electrostatic powder-coating booth where dry epoxy powder fuses to the hot bar into a continuous film. It is the green rebar visible on bridge and parking-structure jobsites across North America.
The coating is a barrier. It physically blocks the moisture, oxygen, and chloride ions that would otherwise reach the steel surface and start corrosion. Because the coating is bonded to the bar at the plant under controlled surface preparation, thickness, and cure, it delivers uniform protection across every bar in the structure.
Primary applications include bridge decks and substructures, highway pavements, parking structures, and marine and coastal structures — anywhere deicing salts or seawater will eventually reach the reinforcement. Where bond strength or development length governs the design, textured epoxy-coated rebar adds a textured second layer that restores the mechanical interlock of an uncoated bar. Coated bars are also seeing increased use in epoxy-coated bars in buildings where coastal exposure or exposed podium slabs justify the protection.
How Corroding Reinforcing Steel Damages Concrete Structures
Fresh concrete is highly alkaline, and that alkalinity forms a thin passive oxide film on embedded steel that keeps it from corroding. The film holds as long as the concrete around the bar stays alkaline and chloride-free.
Once chlorides from road salt or seawater migrate through the concrete — through pores, and much faster through cracks — they reach the bar and break down the passive layer. With moisture and oxygen present, corrosion begins. The rust that forms occupies several times the volume of the steel it replaces, so the bar effectively swells inside the concrete. That internal pressure cracks the cover, delaminates the surface, and eventually spalls concrete away from the reinforcement.
This failure mode does not care how the bar got there. A cast-in-place deck bar and an adhesive-anchored dowel are equally at risk once chlorides arrive. The two products discussed here address that risk differently: anchoring epoxy seals the connection point where a bar enters existing concrete, while a fusion-bonded coating protects the full surface of every bar in the pour.
How Epoxy Coatings Help Prevent Steel Corrosion and Structural Damage
Fusion-bonded epoxy coatings keep chlorides and moisture from reaching the steel in the first place, which addresses corrosion at its source rather than after cracking appears. The performance record is long. Long-term studies of coastal bridge substructures have documented no corrosion-related concrete distress on coated bars after more than two decades of marine exposure, and state DOT evaluations in New York, Michigan, and Nebraska consistently show extended service life compared with uncoated bar.
One specification detail deserves attention when coated bars are used alongside dissimilar metals such as galvanized or stainless elements in the same assembly. Coating integrity governs the galvanic risk in mixed-metal details, so field handling, damage repair, and proper isolation should all be covered in the specification.
Anchoring epoxy supports the same goal at a smaller scale. By filling the annular space between bar and concrete, it seals the connection against the moisture path that would otherwise develop around a loose or mechanically anchored bar.
How the Epoxy Interest Group Supports Corrosion-Resistant Construction
The Epoxy Interest Group is a specialized interest group of the Concrete Reinforcing Steel Institute dedicated to advancing epoxy-coated reinforcing steel. EIG publishes independent research summaries, specification guidance, field handling recommendations, and performance data drawn from decades of DOT and university studies rather than from any single manufacturer.
For engineers and contractors sorting out which epoxy for rebar a project needs, EIG’s resource library provides the technical basis for comparing anchoring and coating options against real exposure conditions and service-life targets. The Project Examples library documents bridges, parking structures, and marine facilities where epoxy-coated reinforcing has delivered long-term performance.
Final Thoughts
Choosing the right epoxy for rebar starts with naming the job. Bonding a bar into an existing structure calls for an anchoring adhesive installed to the manufacturer’s procedure. Protecting new reinforcement from chlorides calls for fusion-bonded epoxy-coated rebar produced at a certified plant. Confirm the selection against the project specification or the engineer of record before ordering, because the products carry different design values and different installation requirements.
Both approaches serve the same purpose: keeping steel and chlorides apart so reinforced concrete reaches its intended service life.
Explore Resources on Epoxy-Coated Reinforcing Steel
EIG’s full technical library covers coating specifications, corrosion protection systems, field handling, and life-cycle cost research. Learn More to explore the standards and studies behind epoxy-coated reinforcing steel, or review related reading on corrosion protection systems and coating specifications if you are evaluating a coated-rebar project.
Frequently Asked Questions
What does “epoxy for rebar” mean — anchoring adhesive or coating?
Both. Anchoring epoxy is a liquid adhesive used to bond bars into drilled holes in existing concrete. Epoxy-coated rebar is a bar with a factory-applied fusion-bonded coating that protects it from corrosion. They serve different purposes and are not interchangeable.
When should I use anchoring epoxy instead of epoxy-coated rebar?
Use anchoring epoxy for post-installed connections: dowels into existing slabs, retrofits, and anchoring hardware. Use epoxy-coated rebar for new cast-in-place or precast concrete exposed to chlorides or moisture.
How do you properly anchor rebar into concrete with epoxy?
Drill to the specified diameter and depth, clean the hole using the 2x2x2 blow-brush-blow method, fill from the bottom to about five-eighths full, insert the bar with a twisting motion, and allow full cure before loading. Follow the manufacturer’s published procedure.
What does epoxy-coated rebar protect against?
Chloride-induced corrosion from deicing salts and seawater, along with moisture and oxygen ingress. The coating is a barrier that keeps corrosive agents from reaching the steel surface.
Where is epoxy-coated rebar typically used?
Bridge decks and substructures, highway pavements, parking structures, marine and coastal structures, and increasingly in buildings with coastal or exposed-slab conditions.
How does corroding reinforcing steel damage concrete structures?
Rust occupies several times the volume of the steel it replaces. That expansion creates internal pressure that cracks, delaminates, and spalls the surrounding concrete.
How do epoxy coatings help prevent steel corrosion?
The fusion-bonded film blocks moisture, oxygen, and chlorides from reaching the bar. Decades of field studies show coated bars delay corrosion initiation and extend service life compared with uncoated steel.
Where can I learn more about choosing the right epoxy for rebar?
The Epoxy Interest Group resource library at epoxyinterestgroup.org provides specification guidance, research summaries, and project examples for corrosion-resistant reinforcing steel.
